PAP025MR1 KD Cellar Star Cooler R449a max 75m3
Ref: 196006
The KD Cellar Star is a high performance cooling system designed for a wide range of applications, including cellars, flower stores, fruit and veg rooms, dairy storage and others using refrigerant R449A
For cellars with up to above ground room volume of 75 m3
Key Features
- Refrigerant : R449A
- Pre-charged with R449A

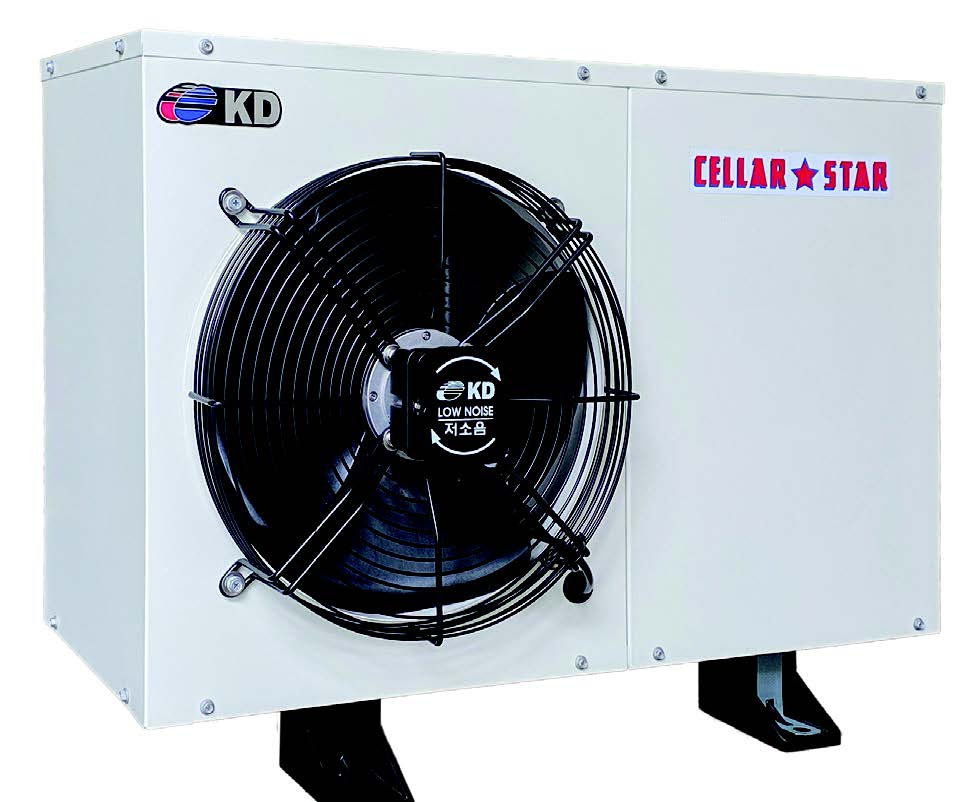

- Housed outdoor unit equipped with a recip or scroll compressor
- Includes microchannel condenser, liquid receiver, refrigerant charge and service valves
- Acoustically lined compressor compartment for noise reduction
- Dixell electronic controller with off cycle defrost
- LP Safety switch
- HP Switch
- Sanhua expansion valve and orifice
- Fitted contactor
- Long lasting whit powder coated finish

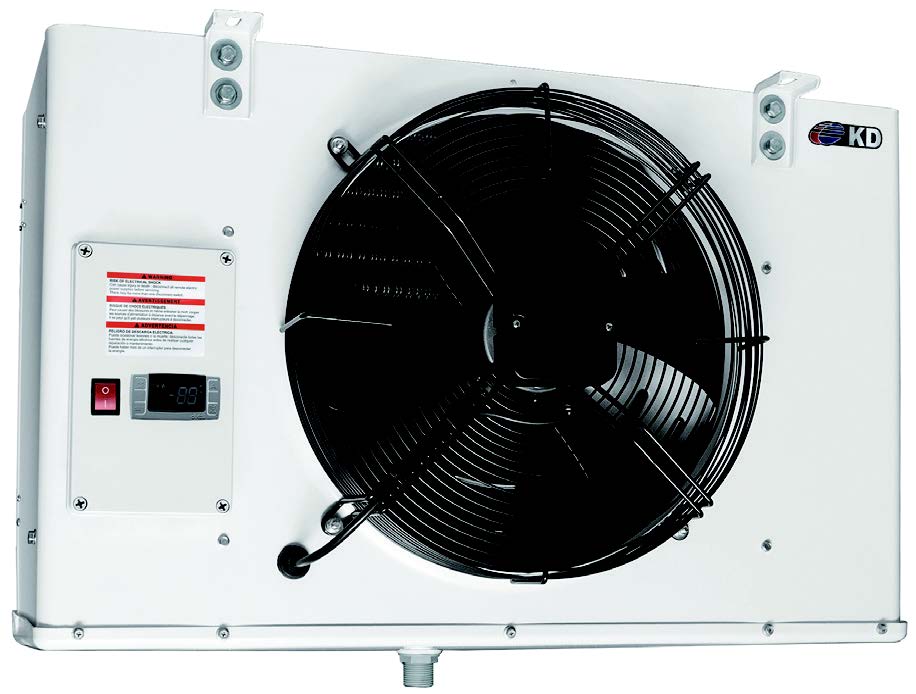

- Indoor unit comes with hinged side panels for easy access
£2,323.35 + VAT
Ordering is only available to Trade Customers
Specification for: PAP025MR1 KD Cellar Star Cooler R449a max 75m3
| Above ground room volume m3 | 75 |
| Additional charge g/m | N/A |
| Air throw | 11m at 0.25m/s terminal air velocity |
| Below ground room volume m3 | 125 |
| Chill room size | 50 m3 |
| FLA Amps | 13.6 |
| Fuse Rating | 32 |
| Indoor airflow m3/hr | 3310 |
| Indoor depth mm | 327 |
| Indoor height mm | 590 |
| Indoor model | SC050R |
| Indoor weight kg | 28 |
| Indoor width mm | 840 |
| Interconnecting cable | 5 Core |
| Liquid pipework | 3/8" |
| LRA Amps | 60 |
| Max pipe run length m | 25 |
| Max pipe run rise m | 8 |
| Model | SC050R/PAP025MR1 |
| Noise levels dB(A) | 46 / 32 |
| Nominal kW | 5901 |
| Outdoor airflow m3/hr | 2520 |
| Outdoor depth mm | 400 |
| Outdoor height mm | 810 |
| Outdoor max pipe run m | 25 |
| Outdoor model | PAP025MR1 |
| Outdoor weight kg | 80 |
| Outdoor width mm | 880 |
| Power Supply | 230/1/50 |
| Pre-charge kg | 2.2 |
| Refrigerant | R449A |
| Suction pipework | 5/8" |
| Temperature range | 4C to 16C |
| watts @ 32C amb 10C room | 5362 |
| watts @ 32C amb 12.7C room | 5901 |
| watts @ 32C amb 14C room | 6039 |
| watts @ 32C amb 16C room | 6262 |
| watts @ 32C amb 4C room | 4556 |
| watts @ 32C amb 6C room | 4838 |
| watts @ 32C amb 8C room | 5164 |
Cellar cooling systems, are also known as cellar coolers, beer cellar coolers and wine coolers.
