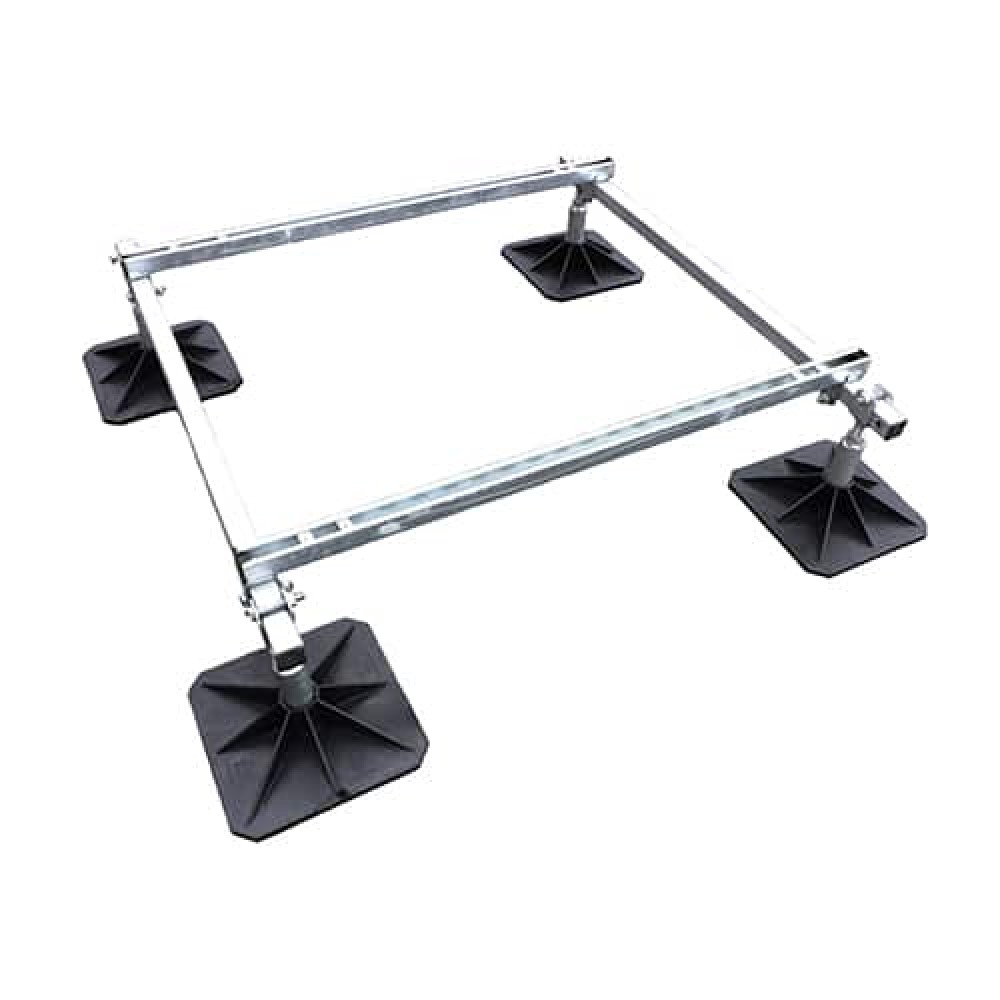

Flexi-Frame – Base Frame 1200x1200mm
The BASE & EXTENDER frames are designed to provide stability and spread loads evenly across flat roof surfaces. The galvanised steel frame raises equipment up to 405mm above the flat roof level, permitting quick and easy access for roof maintenance
BASE & EXTENDER frames are designed to provide stability and spread loads evenly across flat roof surfaces. Modular frames are ideal for a/c split systems and VRV/ VRF systems. The galvanised steel frame raises equipment up to 405mm (higher heights available) above the flat roof level, permitting quick and easy access for roof maintenance.
- Safe working load : 500kg
- Quick and easy height adjustments
- Fast and easy to install
- Time and cost saving
- Allows maintenance access under the equipment
- No penetration of water proof membrane
- Suitable for multiple ASHP installation on flat roofs
£422.68 + VAT
Specification for: Flexi-Frame – Base Frame 1200x1200mm
| Description | Flexi Base Frame |
| Length mm | 1200mm |
| Max Height | 405mm |
| Min Height | 300mm |
| MPN | PH-BF-B |
| Part Name | PH-BF-B |
| Safe working load | 500kg |
| Weight | 30kg |
| Width mm | 1200mm |
The BASE & EXTENDER frames are designed to provide stability and spread loads evenly across flat roof surfaces. The galvanised steel frame raises equipment up to 405mm above the flat roof level, permitting quick and easy access for roof maintenance
